VALVE FEATURES

SPECIFICATIONS:

  1. ALL DIMENSIONS ARE IN MM.
  2. FLANGE AS PER ANSI B16.5, 150#
  3. LINING AND OTHER DIMENSIONAL TOLERANCES AS PER ASTM F1545
    1. Body MOC : ASTM A 216 Gr. WCB
    2. FLANGE : As Per ANSI B 16.5, 150#
    3. LINING : PFA conforming ASTM D 3307

DIMENSIONAL TABLE

Size L-ID(Ød) ØR/F(ØB) (ØD)
INCH MM INCH MM INCH MM
0.079 ±2 0.079 ±2
1" 0.98 25 2.00 50.8 2.36 60
1.5" 1.57 40 2.87 73 3.15 80
2" 1.97 50 3.62 92 3.86 98
2" 1.97 50 3.62 92 3.86 98
3" 3.15 80 5.00 127 5.28 134
3" 3.15 80 5.00 127 5.28 134
3" 3.15 80 5.00 127 5.28 134
4" 3.94 100 6.18 157 6.46 164
4" 3.94 100 6.18 157 6.46 164
6" 5.91 150 8.18 208 8.50 216
6" 5.91 150 8.18 208 8.50 216
6" 5.91 150 8.18 208 8.50 216
8" 7.87 200 10.31 262 10.70 272
8" 7.87 200 10.31 262 10.70 272
8" 7.87 200 10.31 262 10.70 272

DIMENSIONAL TABLE

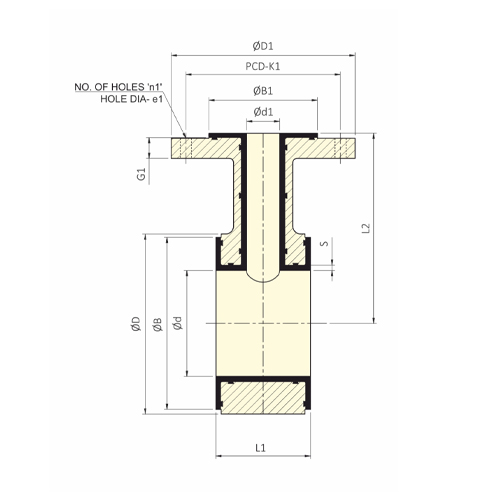

Size L-ID (Ød1) ØR/F (ØB1) F.OD (ØD1) F.THK (G1) P.C.D. (K1) H-DIA (Øe1) NH (n1) Lining THK (S) F To F (L1) F To F (L2)
INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM
0.079 ±2 0.079 ±2 0.06 ±1.6 0.059 ±1.5 0.059 ±1.5
1" 0.79 20 2.01 51 4.25 108 0.56 14.2 3.13 79.4 0.63 16 04 0.138 3.5 1.97 50 3.50 89
1" 0.79 20 2.01 51 4.25 108 0.56 14.2 3.13 79.4 0.63 16 04 0.138 3.5 1.97 50 4.02 102
1" 0.79 20 2.01 51 4.25 108 0.56 14.2 3.13 79.4 0.63 16 0.4 0.138 3.5 1.97 50 4.49 114
1.5" 1.34 34 2.87 73 5.00 127 0.69 17.5 3.87 98.4 0.63 16 04 0.138 3.5 2.95 75 4.49 114
1" 0.79 20 2.01 51 4.25 108 0.56 14.2 3.13 79.4 0.63 16 04 0.138 3.5 1.97 50 5.31 135
1.5" 1.34 34 2.87 73 5.00 127 0.69 17.5 3.87 98.4 0.63 16 04 0.138 3.5 2.95 75 5.31 135
2" 1.73 44 3.62 92 6.00 152.4 0.75 19 4.75 120.6 0.75 19 04 0.157 4 3.54 90 5.31 135
1" 0.79 20 2.01 51 4.25 108 0.56 14.2 3.13 79.4 0.63 16 04 0.138 3.5 1.97 50 6.50 165
1.5" 1.34 34 2.87 73 5.00 127 0.69 17.5 3.87 98.4 0.63 16 04 0.138 3.5 2.95 75 6.50 165
1" 0.79 20 2.01 51 4.25 108 0.56 14.2 3.13 79.4 0.63 16 04 0.138 3.5 1.97 50 7.99 203
1.5" 1.34 34 2.87 73 5.00 127 0.69 17.5 3.87 98.4 0.63 16 04 0.138 3.5 1.97 75 7.99 203
2" 1.73 44 3.62 92 6.00 152.4 0.75 19 4.75 120.6 0.75 19 04 0.157 4 1.97 90 7.99 203
1" 0.79 20 2.01 51 4.25 108 0.56 14.2 3.13 79.4 0.63 16 04 0.138 3.5 1.97 50 9.02 229
1.5" 1.34 34 2.87 73 5.00 127 0.69 17.5 3.87 98.4 0.63 16 04 0.138 3.5 1.97 75 9.02 229
2" 1.73 44 3.62 92 6.00 152.4 0.75 19 4.75 120.6 0.75 19 04 0.157 4 1.97 90 9.02 229
