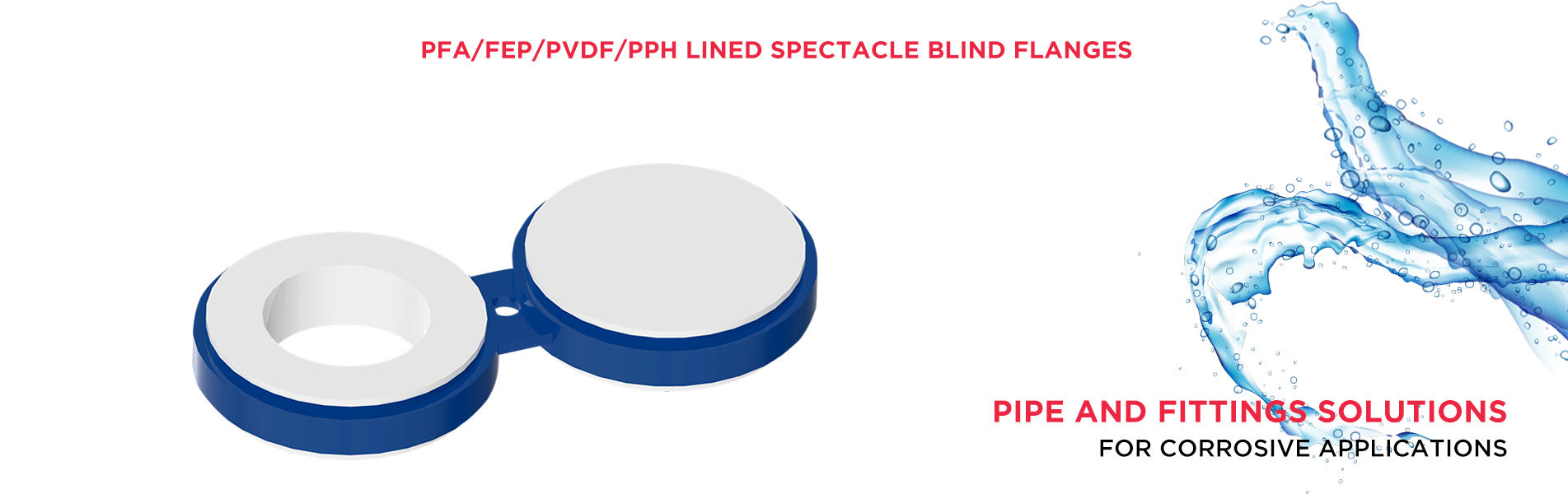

VALVE FEATURES

SPECIFICATIONS:

  1. ALL DIMENSIONS ARE IN MM.
  2. FLANGE AS PER ANSI B16.5, 150#
  3. LINING AND OTHER DIMENSIONAL TOLERANCES AS PER ASTM F1545
    1. FLANGE : ASTM A 105 - 150#
    2. LINING : PFA conforming ASTM D3307

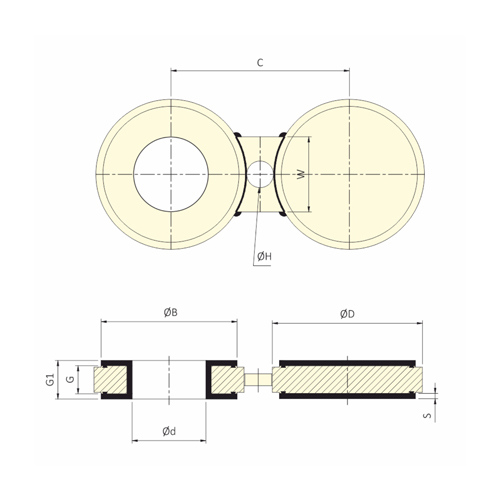

DIMENSIONAL TABLE

Size ØD ØB Ød G G1 C W ØH S
INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM
0.079 ±2 0.079 ±2 0.079 ±2 0.079 ±2
1" 2.5 63.5 2.01 51 0.79 20 0.56 14.3 0.83 21 3.13 79.4 1.50 38 0.55 14 0.14 3.5
1.5" 3.25 82.5 2.87 73 1.34 34 0.69 17.5 0.96 24.5 3.87 98.4 1.50 38 0.55 14 0.14 3.5
2" 4.00 101.5 3.62 92 1.73 44 0.75 19 1.06 27 4.75 120.6 1.97 50 0.71 18 0.16 4
3" 5.26 133.5 5.00 127 2.76 70 0.94 23.8 1.30 33 6.00 152.4 2.52 64 0.71 18 0.18 4.5
4" 6.75 171.5 6.18 157 3.70 94 0.94 23.8 1.30 33 7.50 190.5 2.52 64 0.71 18 0.18 4.5
6" 8.62 219 8.43 214 5.67 144 1.00 25.4 1.34 34 9.50 241.3 2.99 76 0.87 22 0.18 4.5
8" 10.89 276.5 10.63 270 7.56 192 1.13 28.6 1.46 37 11.75 298.4 2.99 76 0.87 22 0.18 4.5
10" 13.25 336.5 12.76 324 9.57 243 1.19 30.2 1.54 39 14.25 362 4.02 102 0.98 25 0.18 0.45
12" 16.00 406.5 15.00 381 11.54 293 1.25 31.8 1.61 41 17.01 432 4.02 102 0.98 25 0.18 45
14" 17.62 447.5 16.26 413 12.68 322 1.37 34.9 1.73 44 18.74 476 4.25 108 1.10 28 0.18 4.5
