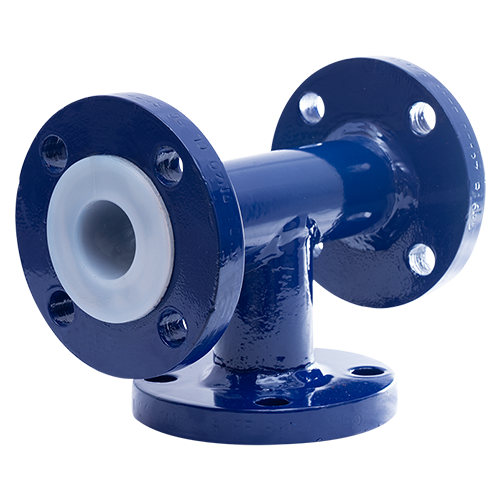

VALVE FEATURES

DIMENSIONAL TABLE

NB	F	F2
20 MM	89	178
25 MM	89	178
32 MM	95	190
40 MM	102	204
50 MM	114	228
65 MM	127	254
80 MM	140	280
100 MM	165	330
125 MM	190	380
150 MM	203	406
200 MM	229	458
250 MM	279	558
300 MM	305	610
350 MM	356	712
400 MM	378	756
500 MM	457	914
600 MM	559	1118

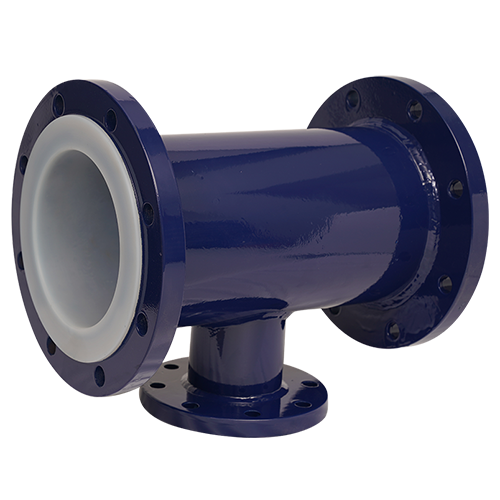

VALVE FEATURES

DIMENSIONAL TABLE

NB	NB1	F	F2
25	20	89	178
32	25/20	95	190
40	25	102	204
50	40/25	114	228
65	50/40	127	254
80	25/50	140	280
100	80	165	330
125	65/80/100	190	380
150	80/100/125	203	406
200	80/100/125/150	229	458
250	100/125/150/200	279	558
300	100/125/150/200/250	305	610
350	100/125/150/200/250	356	712
400	150/200/250/300/350	378	756
500	500	457	914
600	600	559	1118
