VALVE FEATURES

SPECIFICATIONS:

  1. ALL DIMENSIONS ARE IN MM
  2. FOR OTHER DIMENSIONS PLEASE SEE 'LINED PIPE' PAGE
  3. MATERIAL OF CONSTRUCTION
    1. EQUAL TEE: EQUAL CROSS BODY (PIPE)
      ANSI B 46.10 ASTM A 216 Gr. WCB / ASTM A 106 Gr. B
    2. FLANGE : ANSI B. 16.5 ASA 150W IS 2002
    3. LINER :
      ASTM D 3418
      ASTM D 2116

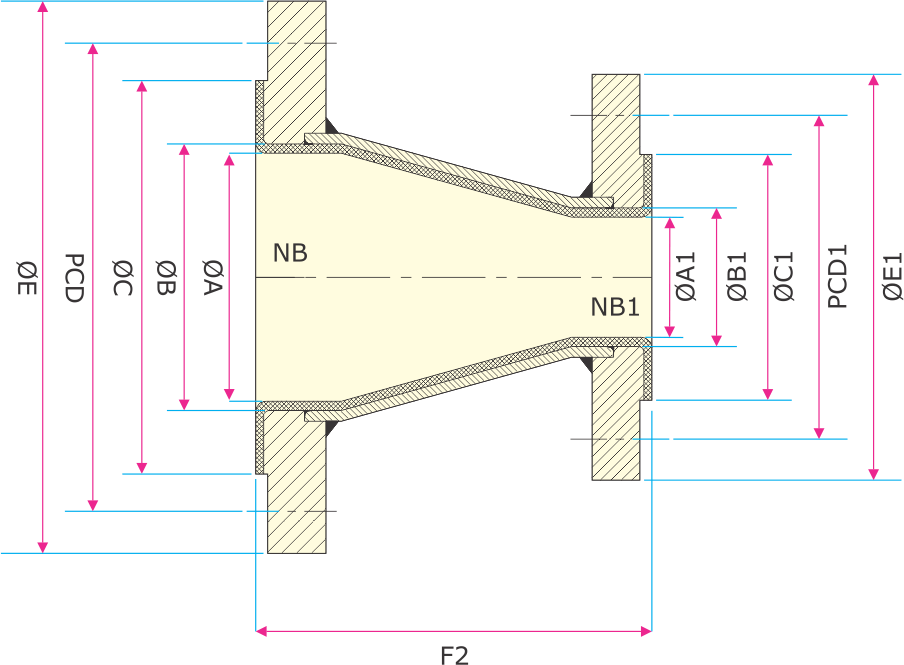

DIMENSIONAL TABLE

NB NB1 F2
25 20 114
32 25/20 114
40 15/25 114
50 40/25 127
65 50/40 127
80 50/40 152
100 80/50/25 178
125 100/80 203
150 125/100 229
200 150 279
250 200 305
300 250 356
